Ringlock Scaffolding System
Ringlock scaffolding is a type of modular scaffolding material prefabricated with ring locks on vertical parts and cast steel ledger heads & brace heads on horizontals and diagonal parts.
Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ledgers, braces, decks, etc, used to form scaffold frames and towers for construction and shoring.
In the ringlock scaffolding, wedge pins are fixed on the ring lock ledger and brace heads by rivets. It is used to fix ring system horizontals and braces between ringlock standards.
The rings on the ringock scaffolding standards are like rosette flowers. They are round and with 8 holes. The circled placed 8 holes allows 4 ringlock diagonal braces and 4 ringlock horizontals connected to the same verticals at the same time from 8 directions. That is why the ring system scaffold is the most versatile scaffold system. It can be used in all shapes of construction: rectangle, circle, angular, unregular shaped, etc.
3D Model Of Ringlock Scaffolding
Ringlock Scaffolding Parts
Ringlock standards are vertical parts in the ring system. Sizes 0.5m to 4m. The standard includes rosette rings at 50cm intervals. There are OD48.3mm and OD60mm ringlock standards.
Ringlock ledger is typical horizontal parts made from OD48.3mm scaffold tubes. It includes ledger heads and wedge pins on both sides. The ledger headsets connect to the ring lock standard rings in erect.
Ringlock scaffolding diagonal brace makes the ring lock system tower bay stable and strong. It is with two sets of brace heads. Brace sizes are versatile according to horizontal sizes and vertical distances.
The base collar is also called a starter in the ring lock system. We custom for you different sizes of base collars from 240mm to 410mm. You can choose the right base collar size for construction or staging.
Adjustable base jacks are also called adjustable screw jacks, scaffold jacks, levelling jacks, base jacks or jack bases, etc. It is used to adjust the level with differences in height of the underground for system scaffolding.

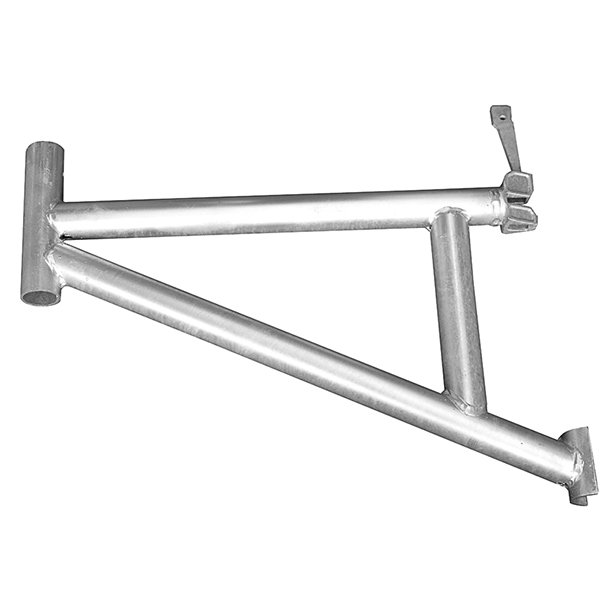

The ring lock side brackets lock rings of ring lock standards outside the main frame. There are sizes of one-board, two-boards, and three-boards.
Ringlock Scaffolding Details

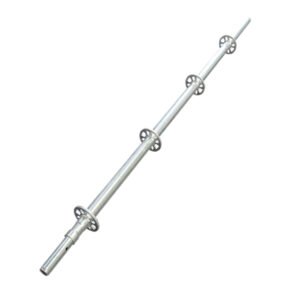

Ringlock Standard
Ringlock scaffolding standards are vertical parts of ring system scaffold. They are fabricated by scaffold tubes, rosettes, and scaffold spigots. While the rosette rings are welded on the scaffold tube at every 500 mm (250mm is available too).
Ringlock standards are the most important parts of the ringlock scaffolding system. It gives connectors for other ringlock scaffolding parts like rinlgock horizontals, ringlock braces, side brackets, lattice girders & beams, ringlock bridging, etc.
According to the ringlock scaffolding standard sizes, you can find OD48mm ringlock standards and OD60mm ringlock standards.
OD48mm ringlock standards are used for lightweight required normal construction. While OD60mm ringlock scaffolding is also called heavy-duty shore system ringlock. They are used for heavy-duty load requirement shoring construction.
| Iteam | Material | Size | Surface |
|---|---|---|---|
| RSRS 050 | Q355 48.3*3.2mm | 0.5m | Hot-dip Galvanized |
| RSRS 100 | Q355 48.3*3.2mm | 1.0m | Hot-dip Galvanized |
| RSRS 150 | Q355 48.3*3.2mm | 1.5m | Hot-dip Galvanized |
| RSRS 200 | Q355 48.3*3.2mm | 2.0m | Hot-dip Galvanized |
Ringlock Ledger
Ringlock ledgers are horizontal parts of the ring system scaffolding. Thus you can call it to ringlock horizontals.
Ringlock O ledgers are made by OD48.3mm standard scaffold tubes. At both ends of the ring lock O ledgers, two sets of ledger ends(heads) and wedge pins. The wedge pins are fixed on the ringlock ledgers by special rivets.
| Iteam | Material | Size | Surface |
|---|---|---|---|
| RSRS 050 | Q355 48.3*3.2mm | 0.5m | Hot-dip Galvanized |
| RSRS 100 | Q355 48.3*3.2mm | 1.0m | Hot-dip Galvanized |
| RSRS 150 | Q355 48.3*3.2mm | 1.5m | Hot-dip Galvanized |
| RSRS 200 | Q355 48.3*3.2mm | 2.0m | Hot-dip Galvanized |
Ringlock Diagonal Brace
Ringlock diagonal braces are a type of vertical brace for the ringlock scaffolding tower. The diagonal brace sizes are based on the bay of the ringlock horizontal and vertical sizes. In fabrication, it is made from OD48.3mm standard scaffold tubes with braced heads (left and right brace head) on both sides.
More than diagonal braces, there are horizontal braces to make the scaffold tower stable and take more load.
| Iteam | Material | Size | Surface |
|---|---|---|---|
| RSRS 050 | Q355 48.3*3.2mm | 0.5m | Hot-dip Galvanized |
| RSRS 100 | Q355 48.3*3.2mm | 1.0m | Hot-dip Galvanized |
| RSRS 150 | Q355 48.3*3.2mm | 1.5m | Hot-dip Galvanized |
| RSRS 200 | Q355 48.3*3.2mm | 2.0m | Hot-dip Galvanized |
