Cuplock Scaffolding For Sale In Singapore
Cuplock Scaffolding Solutions: Reliable, Durable, and Easy to Assemble.
Areas
Cuplock Scaffolding Singapore
At RAPID (S.E.A.) Engineering Pte Ltd, we offer top-quality Cuplock Scaffolding, a versatile and cost-effective modular scaffolding system designed to provide secure support for a wide range of construction projects. Known for its simple, yet highly effective cup-and-lock connection mechanism, Cuplock scaffolding ensures fast assembly and dismantling, making it ideal for both temporary and permanent structures.
Key Features and Components of Cuplock Scaffolding
Our Cuplock Scaffolding is designed for maximum efficiency, safety, and flexibility. It is made up of several key components, each engineered to provide solid support and secure connections. Here are the essential components and their specifications:
Cuplock Scaffolding Specifications
Component | Size Options |
---|---|
Cuplock Standard | 500mm, 1000mm, 1300mm, 1500mm, 1800mm, 2000mm, 2300mm, 2500mm, 3000mm |
Cuplock Transom Beam | 565mm, 795mm, 1200mm, 1300mm, 1800mm, 2500mm |
Cuplock Ledger | 600mm, 900mm, 1000mm, 1200mm, 1300mm, 1600mm, 1800mm, 2500mm |
Diagonal Bracer | 1300×2000mm, 1800×2000mm, 2500×2000mm |
Bracket | 565mm (6.60kg), 795mm (7.60kg) |
Standard Material: 48.3 x 3.2mm steel tubing
Steel Grades: Q235, Q345
Surface Finish: Hot Dipped Galvanized, Paint

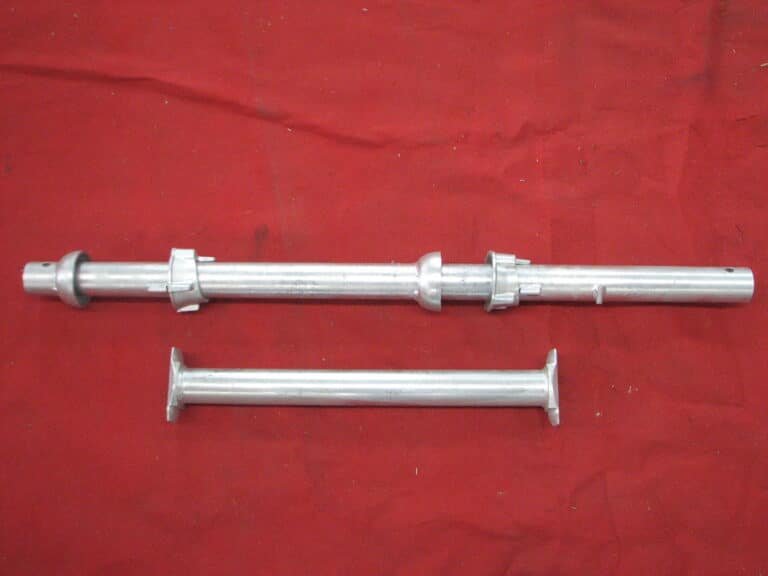

The Cuplock Cup is the central component that connects the vertical standards with the horizontal ledgers and transoms. It features a two-piece design: a top and bottom cup, which securely lock the components in place without the need for bolts or nuts, ensuring quick and reliable assembly.
The Cuplock Ledger is a horizontal beam that connects the vertical Cuplock standards, providing structural support and stability. Available in various lengths, it is designed to fit securely into the cups of the Cuplock system, forming a robust and secure framework for scaffolding.
The Blade of the Cuplock Ledger refers to the end of the ledger that inserts into the Cuplock cups. It features a flat, blade-like design that helps ensure a tight, secure fit with the cups, improving the stability and load-bearing capacity of the scaffolding structure.
The Cuplock Caster Adapter with Caster Wheel is used to add mobility to Cuplock scaffolding structures. It allows the scaffolding to be easily moved on-site by attaching caster wheels to the base of the Cuplock system, providing flexibility and convenience, particularly for temporary or mobile scaffolding needs.
The Cuplock Scaffolding Board Bracket is used to support the wooden or metal scaffolding boards on the Cuplock scaffolding system. This bracket secures the boards horizontally across the scaffolding, providing a stable working surface for construction workers.
The Scaffold Spigot is an attachment that connects two vertical Cuplock standards, ensuring the scaffolding structure remains stable and vertically aligned. It is inserted into the top of the standard, allowing for height adjustments and adding strength to the vertical framework of the system.
Why Choose Cuplock Scaffolding?
Cuplock Scaffolding stands out for its ease of use, strength, and versatility. Here’s why it’s the preferred choice for many construction professionals:
- Fast and Simple Assembly: The cup-and-lock mechanism allows for quick, secure connections between horizontal and vertical components, speeding up setup time and reducing labor costs.
- Minimal Maintenance: With no loose parts to lose or misplace, the Cuplock system is easy to maintain and offers a longer lifespan with less frequent repairs.
- Cost-Effective: Cuplock scaffolding is designed to be both affordable and highly functional, making it a great option for construction companies looking to optimize their project costs.
- Flexibility in Design: Whether your project requires straight, curved, or even complex geometric configurations, Cuplock scaffolding can adapt to almost any design or site requirement.
- Enhanced Safety: The secure locking mechanism ensures stability and eliminates risks associated with loose fittings, offering a safer working environment.
Common Applications of Cuplock Scaffolding
Cuplock scaffolding is widely used in various industries, including:
- Construction: For high-rise buildings, residential projects, and civil engineering works.
- Industrial Maintenance: Used in factories, power plants, and refineries for safe and stable access.
- Offshore Projects: Suitable for marine environments and other heavy-duty offshore applications.
- Event Staging: Ideal for creating temporary structures for large-scale events and exhibitions.
Understanding Cuplock Scaffolding: Material, History, and Comparison with Other Systems
Materials Used in Cuplock Scaffolding
Cuplock scaffolding is constructed primarily from Q235 and Q345 steel grades, known for their excellent tensile strength and resistance to wear. The 48.3mm diameter steel tubes are coated with Hot Dipped Galvanization to protect the system from rust and corrosion, ensuring longevity even in harsh weather conditions.
- Q235 Steel: Commonly used for scaffolding systems due to its balance of strength and affordability.
- Q345 Steel: A higher-grade steel, providing added strength, especially suited for heavier-duty applications.
This combination of strong steel materials and galvanized coatings ensures that Cuplock scaffolding can withstand the rigors of construction sites, offering both short- and long-term performance.
Cuplock Scaffolding vs. Other Scaffolding Systems
When compared to other scaffolding systems, Cuplock scaffolding offers several advantages:
- Vs. Ringlock Scaffolding (All Round System): While both systems are modular and offer quick assembly, Cuplock scaffolding is generally considered more affordable and easier to maintain due to its simpler connection mechanism. Ringlock scaffolding provides more customization and flexibility in design, but Cuplock is more straightforward and cost-effective for many users.
- Vs. Frame Scaffolding: Cuplock scaffolding is more versatile, offering greater flexibility in height and horizontal adjustments. Frame scaffolding systems are simpler, but Cuplock provides better support for more complex structures and uneven ground conditions.
History of Cuplock Scaffolding
Cuplock scaffolding was first introduced in the 1970s and quickly became popular due to its efficient design. The simple but secure cup-and-lock mechanism revolutionized how scaffolding was assembled, offering an easy and faster alternative to traditional scaffold systems that relied on nuts, bolts, and wedges. Over the years, the Cuplock system has evolved into one of the most widely used modular scaffolding systems globally, known for its strength and reliability.
Popular Regions for Cuplock Scaffolding Use
Cuplock scaffolding is commonly used across the world, with significant adoption in:
- Europe: Particularly in the UK and Germany, where the system is often used for large-scale construction projects.
- Asia: Cuplock is a popular choice for building infrastructure in cities like Singapore, Hong Kong, and Mumbai.
- Australia: Used extensively in the mining and oil & gas sectors due to its reliability in harsh conditions.
- Middle East: Cuplock scaffolding is frequently seen on high-rise buildings and industrial projects in countries like the UAE and Qatar.
Free Consultation
Get A Quote
Why Choose RAPID (S.E.A.) for Your Cuplock Scaffolding Needs?
At RAPID (S.E.A.) Engineering Pte Ltd, we provide the highest-quality Cuplock Scaffolding systems tailored to your project’s needs. Our systems are designed for durability, safety, and ease of use, ensuring that your construction projects run smoothly and efficiently. Whether you’re working on a residential building, an industrial site, or a large-scale infrastructure project, our Cuplock Scaffolding can meet your requirements.
Contact us today for a free consultation or to get a personalized quote for your next scaffolding project.
