Octagonlock Scaffolding
Octagonlock Scaffolding Standards, Ledgers, Diagonal & Horizontal Braces, Lattice Girders & Bridgings, Brackets & Boards.
what is Octagonlock scaffolding?
Octagonlock Scaffolding
Octagonlock scaffolding is a type of modular scaffolding material prefabricated with Octagon locks on vertical parts and cast steel ledger heads & brace heads on horizontal and diagonal parts.
Octagonlock scaffolding is a type of scaffolding system commonly used in construction and maintenance projects. It is named after its unique octagonal shape that allows for easy and secure connection of the scaffolding components. This system is known for its stability and safety, and it is often used in high-rise building construction or renovation projects. The Octagonlock scaffolding is made of high-quality materials and is designed to meet international safety standards. Its modular design allows for easy assembly and disassembly, making it an efficient solution for construction projects of all sizes. With its strong and durable structure, the Octagonlock scaffolding is a popular choice for contractors and builders worldwide.
OCTAGONLOCK
Octagonlock Standard
Octagonlock scaffolding standards are vertical parts of the octagon system scaffold. They are fabricated by scaffold tubes, octagonal plate, and scaffold spigots.
Octagonlock standards are the most important parts of the Octagonlock scaffolding system. It gives connectors for other Octagonlock scaffolding parts like Octagonlock horizontals, Octagonlock braces, etc.
According to the Octagonlock scaffolding standard sizes, you can find OD48mm Octagonlock standards and OD60mm Octagonlock standards.
OD48mm Octagonlock standards are used for lightweight required typical construction. While OD60mm Octagonlock scaffolding is also called a heavy-duty shore system. They are used for heavy-duty load requirement shoring structures.
Light Duty
| Iteam | Material | Size (L) | Weight Approx. |
|---|---|---|---|
| RSOS 050 | Q355 48.3*3.2mm | 0.5m | 3.07kg |
| RSOS 100 | Q355 48.3*3.2mm | 1.0m | 5.54kg |
| RSOS 150 | Q355 48.3*3.2mm | 1.5m | 8.01kg |
| RSOS 200 | Q355 48.3*3.2mm | 2.0m | 10.48kg |
| RSOS 250 | Q355 48.3*3.2mm | 2.5m | 12.95kg |
| RSOS 300 | Q355 48.3*3.2mm | 3.0m | 15.42kg |
Heavy Duty
| Iteam | Material | Size (L) | Weight Approx. |
|---|---|---|---|
| RSHS 050 | Q355 60.3*3.2mm | 0.5m | 3.84kg |
| RSHS 100 | Q355 60.3*3.2mm | 1.0m | 6.91kg |
| RSHS 150 | Q355 60.3*3.2mm | 1.5m | 9.99kg |
| RSHS 200 | Q355 60.3*3.2mm | 2.0m | 13.18kg |
| RSHS 250 | Q355 60.3*3.2mm | 2.5m | 16.29kg |
| RSHS 300 | Q355 60.3*3.2mm | 3.0m | 19.21kg |
Dimension, Surface, Material and Style can be specified.

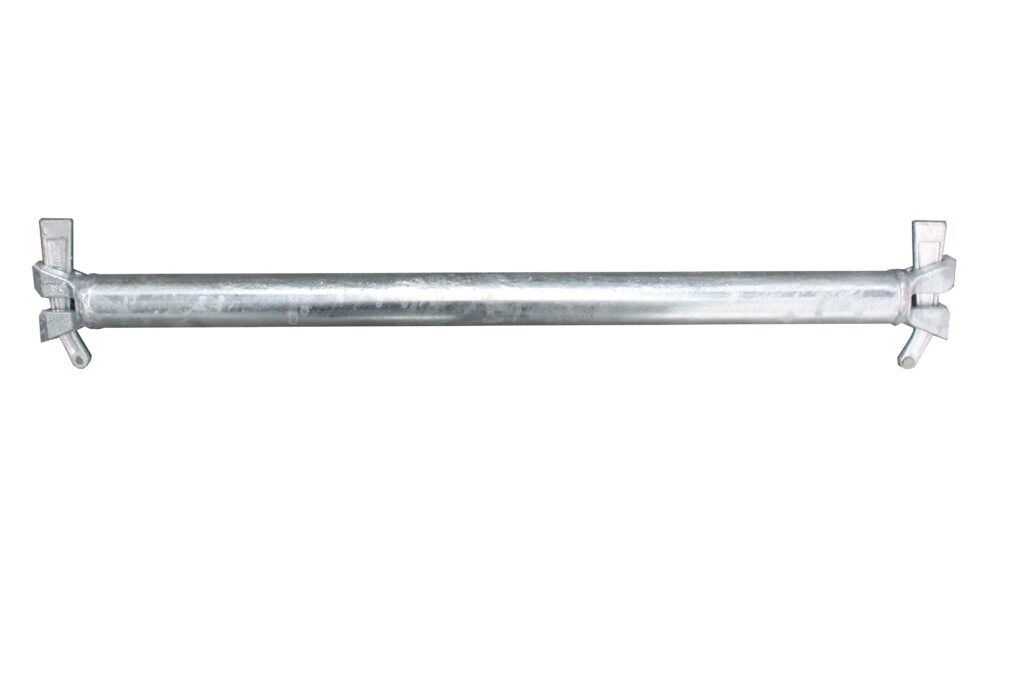

Octagonlock Ledger
Octagonlock scaffolding ledger is a horizontal component of the Octagonlock scaffolding system that provides support for the scaffold boards or decking. It connects the vertical standards or uprights of the scaffolding and helps to distribute the weight of the platform evenly.
The Octagonlock scaffolding ledger is designed to fit securely into the rosettes of the standards, providing a safe and stable platform for workers to perform their tasks. It is a key component of the Octagonlock scaffolding system, which is known for its strength, durability, and ease of use.
| Iteam | Material | Size (L) | Weight Approx. |
|---|---|---|---|
| RSOL 060 | Q235 48.3*2.5mm | 0.6m | 2.31kg |
| RSOL 090 | Q235 48.3*2.5mm | 0.9m | 3.22kg |
| RSOL 120 | Q235 48.3*2.5mm | 1.2m | 4.12kg |
| RSOL 150 | Q235 48.3*2.5mm | 1.5m | 5.03kg |
| RSOL 180 | Q235 48.3*2.5mm | 1.8m | 5.94kg |
| RSOL 200 | Q235 48.3*2.5mm | 2.0m | 6.54kg |
Dimension, Surface, Material and Style can be specified.

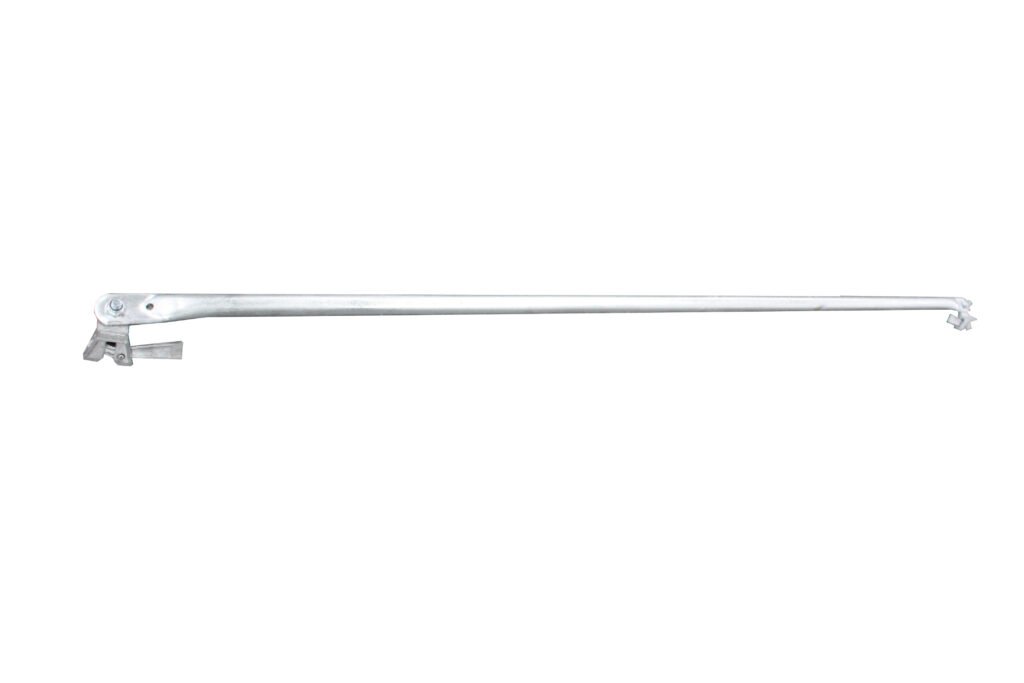

Octagonlock Diagonal Brace
Octagonlock scaffolding diagonal brace is a component used in the construction of Octagonlock scaffolding systems. It is a diagonal steel tube that connects the vertical standards and horizontal ledgers, providing additional stability and strength to the scaffolding structure.
The diagonal brace helps to distribute the weight and forces evenly across the entire scaffold, making it safer for workers to perform their tasks at height. Octagonlock scaffolding diagonal braces come in various lengths and can be easily installed with the scaffolding components.
| Iteam | Material | Size (W*H) | Weight Approx. |
|---|---|---|---|
| RSOB 2088 | Q235 33*2.4mm | 0.6*2.0m | 4.84kg |
| RSOB 2193 | Q235 33*2.4mm | 0.9*2.0m | 5.00kg |
| RSOB 2332 | Q235 33*2.4mm | 1.2*2.0m | 5.23kg |
| RSOB 2500 | Q235 33*2.4mm | 1.5*2.0m | 5.52kg |
| RSOB 2691 | Q235 33*2.4mm | 1.8*2.0m | 5.86kg |
| RSOB 2828 | Q235 33*2.4mm | 2.0*2.0m | 6.11kg |
Dimension, Surface, Material and Style can be specified.
